Description

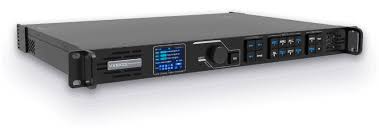

The Novastar VX1000 is an all-in-one LED screen controller that combines video processing and video control functionalities. It is capable of driving large LED displays, supporting up to 6.5 million pixels with a maximum output width of 10,240 pixels or a maximum height of 8,192 pixels. This makes it suitable for ultra-wide and ultra-high LED screen applications.

• Video Processing and Control: Integrates video processing and video control into one device, simplifying setup and operation.
• High Image Quality: Supports high-resolution 4Kx1K@60Hz image processing and employs SuperView III image quality processing technologies for excellent image display.
• Multiple Working Modes: Can operate as a Video Controller, Fiber Converter, or in Bypass mode, offering flexibility in different scenarios.
• Low Latency: Features a low latency mode, reducing the delay between the input source and the receiving card to 20 lines when bypass mode is enabled.
• 3D Functionality: Supports 3D display when used with a compatible 3D emitter and glasses.
• Pixel-Level Brightness and Chroma Calibration: Works with NovaLCT software to allow for calibration of individual LED pixels, improving brightness and color consistency.
• Output Scaling: Provides stepless output scaling to adjust the size and aspect ratio of the content displayed.
• Layer Management: Supports up to 3 layers with adjustable size, position, and priority, enabling complex display layouts.
• Input Source Backup: Offers backup functionality for input sources, ensuring uninterrupted display in case of a source failure.
• Redundancy: Provides redundancy at the device, output (Optical and Ethernet ports), and input source levels for enhanced reliability.
• Software Integration: Works with NovaStar’s software like NovaLCT and V-Can for streamlined configuration, control, and management, including screen configuration, Ethernet port backup settings, layer management, preset management, and firmware updates.

• Loading Capacity: 6.5 million pixels.
• Maximum Output Width & Height: Max width: 10,240 pixels. Max height: 8,192 pixels.
• Input Connectors: Includes 2x HDMI 1.4, 2x DVI (HDMI 1.4), 1x 3G-SDI, and 1x OPT1 (Self-adaptive for input or output).
• Output Connectors: Features 10x Ethernet ports for LED screen connection, 1x HDMI for monitoring or output, 1x HDMI 1.4 LOOP, 1x DVI LOOP, 1x 3G-SDI LOOP, and 2x OPTICAL ports for LED screen connection.
• Resolution: Supports 4K resolution. Max input resolution: 3840×1080@60Hz or 3840×2160@30Hz for HDMI and DVI inputs. Max input resolution: 1920×1080@60Hz for 3G-SDI input.
• Power Consumption: Rated power consumption of 28 W.
• Dimensions: 483.6 mm × 351.2 mm × 50.1 mm.
• Weight: 4 kg.

• Medium and high-end rental displays.
• Stage control systems.
• Fine-pitch LED screens.
• Events, concerts, and advertising.
• Large-scale digital signage installations.
• Professional AV setups.
