Description

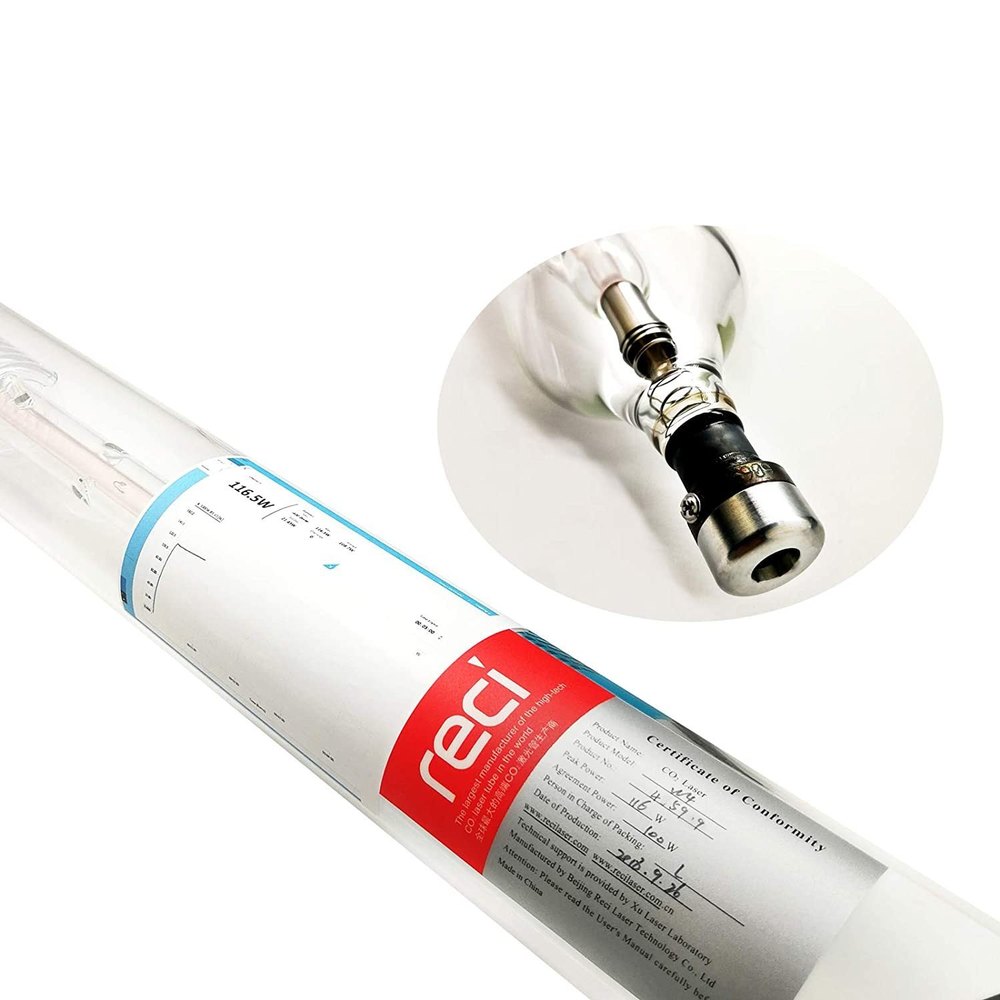

Reci 100w laser tube
Based on the search results, here’s information regarding the RECI 100W CO2 Laser Tube:
Key specifications
- Model: W4 (or T4 in some listings)
- Rated Power: 100W
- Peak Power: 130W
- Length: 1400mm (Other lengths like 1150mm and 1650mm also mentioned for 100W tubes from Reci)
- Diameter: 80mm (Other diameters like 65mm are also available for 100W tubes from Reci)
- Lifespan: Up to 10,000 hours
- Cooling: Water Cooling (Water chiller required)
- Triggering Voltage: 24kV
- Recommended Current: 26mA (Long-term operating current should be controlled at 28mA or below)
- Max Operating Current: 30mA
- Warranty: 540 days (Other listings mention 6 months, 10 months, or 12 months)
- Applications: Laser engraving and cutting of materials like acrylic, cardboard, ceramics, fabric, glass, leather, paper, stone, wood, etc.
Price and availability
Prices vary depending on the supplier, ranging from ₹14,300 to ₹26,800 or more in India. Some international prices are also available, for example
Compatible power supply
A 100W CO2 Laser Power Supply designed for RECI W4 laser tubes is required. The SD ZRSUNS DY-13 is specifically mentioned as being compatible. Note that while some 100W power supplies might be designed for other tubes (e.g., RECI Z2W2S2), they might not offer optimal performance or features for the W4 model.
